Delivering A High-Performance Climate Control System In Birmingham

At Fostair Ltd, we recently completed a VRV heat recovery system installation at Clays Birmingham, a newly repurposed indoor clay pigeon shooting and entertainment bar in the heart of Birmingham. This £180,000 project required the installation of a high-efficiency climate control system across three floors, ensuring individual temperature regulation in different areas of the building.

The project had to be completed within five weeks, making it a fast-paced installation that required precision planning and expert execution to meet the client's tight deadline ahead of the Christmas party season. Our team worked tirelessly to ensure that the new heating and cooling system was fully functional before Clays Birmingham's grand opening.

VRV Heat Recovery System Installation Across Three Floors

As an Accredited Installer for Mitsubishi Electric, we selected Mitsubishi VRV heat recovery systems for this project, providing flexible and energy-efficient climate control across the entire venue. Each floor had specific climate control needs, requiring a carefully designed installation approach.

First Floor: High-Capacity Air Distribution System

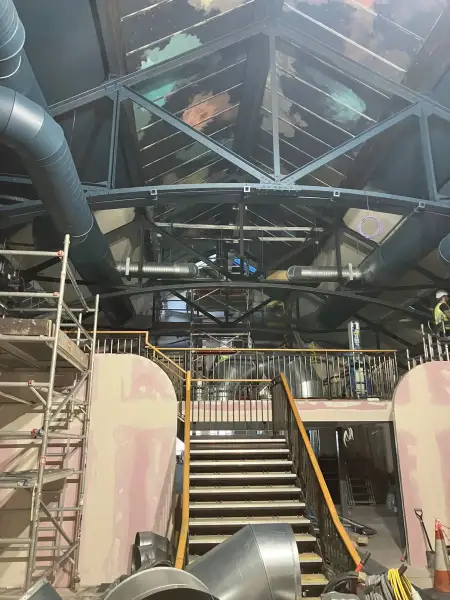

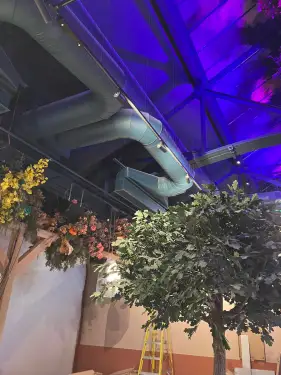

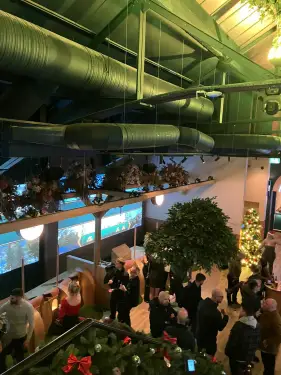

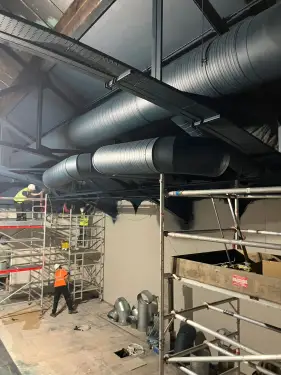

The first floor of Clays Birmingham is one of the most frequently used areas of the venue, requiring a system capable of maintaining consistent air distribution and climate control. We installed nine ducted systems, which were integrated into spiral ductwork. This setup achieves an even airflow throughout the space, preventing temperature fluctuations that can affect visitor comfort.

Additionally, we fitted linear air distribution grilles, which are designed to optimise air circulation while maintaining a sleek, modern appearance. This system allows for a quiet and unobtrusive cooling and heating experience, which is essential in an entertainment venue where customer experience is key.

Second Floor: Premium Climate Control For VIP Area

The second floor serves as the VIP area, where guests expect a high level of comfort. To maintain a luxurious atmosphere, we installed five ducted systems, ensuring precise temperature control tailored to different zones within the space.

Once again, these systems were connected to spiral ductwork and linear air distribution grilles to create an aesthetically pleasing and effective climate solution. The airflow is fully customisable, allowing staff to adjust the temperature in different sections of the floor based on occupancy levels and comfort preferences.

Third Floor: Temperature Management For Kitchen / Staff Area

The third floor houses the kitchen and staff area, where consistent temperature regulation is essential due to the heat generated by kitchen equipment. We installed five wall-mounted air conditioning systems, producing effective cooling in high-temperature environments.

Unlike the ducted systems used on the lower floors, these wall-mounted units were chosen for their ease of installation and energy efficiency. Kitchens require precise ventilation and air circulation, so these units provide a steady and controlled temperature, improving both working conditions and overall efficiency in food preparation areas.

Centralised Control For Maximum Efficiency

The entire system is controlled via the Mitsubishi AE200 Central Controller, allowing for remote access and real-time climate adjustments. This means that each floor maintains the perfect temperature without the need for constant manual adjustments. The automated controls also contribute to energy savings, as the system adapts to real-time usage and occupancy levels.

VRV Heat Recovery System - Benefits

A VRV heat recovery system offers significant advantages for a commercial venue like Clays Birmingham, where different areas of the building require individual temperature control.

Simultaneous Heating & Cooling

One of the biggest advantages of the VRV heat recovery system is its ability to provide simultaneous heating and cooling. This means that one part of the venue can be heated while another is cooled, all using the same system. This is particularly beneficial in a multi-floor entertainment venue, where different areas experience varying levels of foot traffic and heat generation.

For example, while the kitchen on the third floor may require constant cooling due to the high heat output from cooking equipment, the VIP area on the second floor may need a slightly warmer setting for optimal guest comfort. The heat recovery system redistributes excess heat, ensuring optimal climate control across all floors without unnecessary energy wastage.

Energy Efficiency / Cost Savings

Traditional heating and cooling systems can be energy-intensive, leading to high operational costs. However, a VRV heat recovery system is designed to optimise energy usage by recycling and redistributing heat where needed.

Instead of expelling warm air outside, the system captures and reuses excess heat, reducing overall energy consumption. This leads to lower utility costs for the business, making it a sustainable and cost-effective solution for commercial properties.

Customisable Temperature Control

Each floor in Clays Birmingham has different climate control needs, and the VRV heat recovery system allows precise adjustments for every area. The Mitsubishi AE200 Central Controller provides user-friendly management, enabling staff to set and adjust temperatures with ease.

Additionally, the system is self-regulating, meaning it adjusts based on occupancy levels and real-time temperature changes. This prevents overheating or excessive cooling, keeping energy usage efficient and climate control consistent.

Overcoming Logistical Challenges

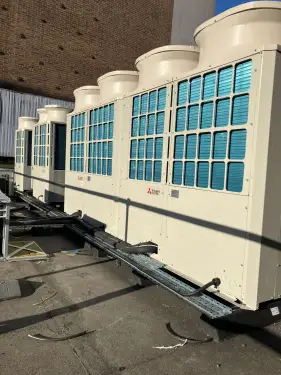

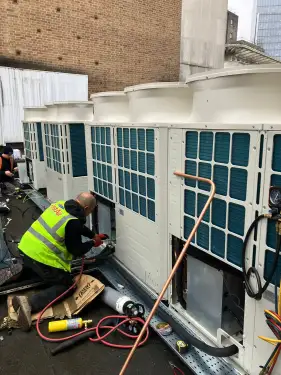

As the site was located on New Street in central Birmingham, a crane lift was not possible for placing the outdoor units. Instead, all outdoor units had to be delivered in kit form and reassembled on the roof.

This required a specialist “lift and shift team”, who worked with our Engineers to manually transport and assemble the units in the final location. This method ensured a safe and efficient installation, despite the limitations of working in a busy city centre environment.

Completing The Project Ahead Of Schedule

With a five-week deadline, this was a fast-paced project that required detailed planning and expert execution. The client needed the venue operational for the Christmas party season, making timely completion essential.

Thanks to our experienced installation team, we finished the project ahead of schedule, meaning the client had zero delays in their business opening plans. The system was fully tested and handed over without defects, providing the client with a reliable and efficient climate control solution.

Expert Air Conditioning Installations Throughout The Midlands

At Fostair Ltd, we specialise in commercial air conditioning solutions tailored to complex building layouts and high-traffic environments. Our ability to deliver large-scale projects within tight deadlines ensures businesses can operate efficiently without delays.

If you're looking for a VRV heat recovery system installation in Birmingham, Nottingham or anywhere throughout the Midlands, , contact us today to discuss your project requirements.
